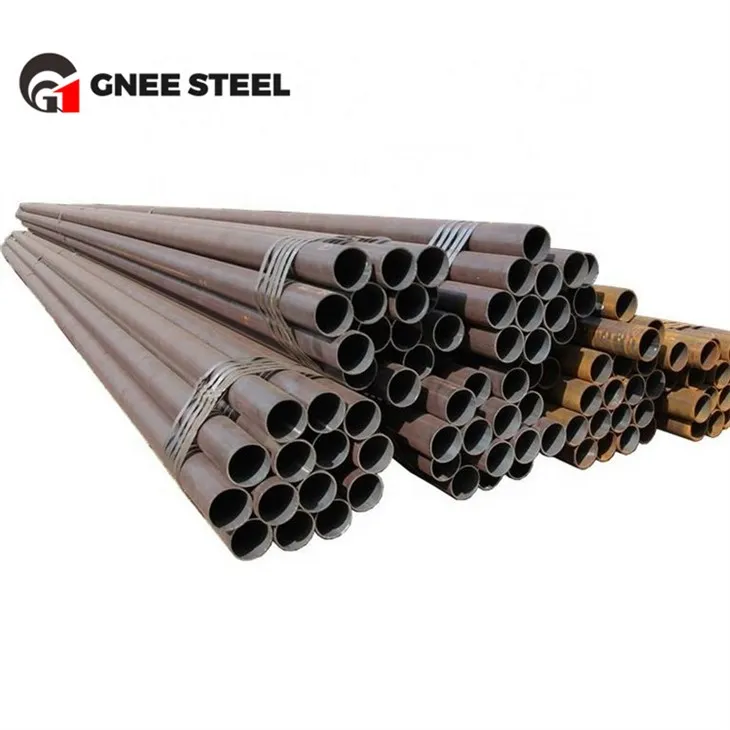

ASTM A214 Kub Exchanger Yeeb Nkab

Dab tsi yog condenser raj?

Ntawm no yog peb hom condenser raj: ncaj, kheej kheej, thiab serpentine. Cov lus qhia tshwj xeeb tau qhia ntev (mm), thiab muaj ntau tshaj 150 txog 350 hom. Lub raj sab hauv ntawm lub raj condensation muaj splices ntawm ob qho kawg, uas tuaj yeem txuas nrog lwm cov khoom siv ntawm cov cuab yeej sim kom tso cai rau cov roj kub kub los yog kua ntws los ntawm cov raj sab hauv thiab ua kom condensed. Lub raj sab nrauv feem ntau muaj qhov qhib sab saud thiab sab qis ntawm ob sab, uas txuas nrog cov raj yas nqa cov khoom txias (xws li dej). Siv nyob rau hauv distilled kua los yog organic npaj ua hauj lwm raws li condensation los yog reflux.



ASTM A214 tshav kub exchanger raj yog seamless steel raj siv nyob rau hauv tshav kub exchangers thiab condensers.
ASTM A214 condensing steel yeeb nkab belongs rau H48 steel yeeb nkab thiab cam khwb cia hlau yeeb nkab nyob rau hauv Suav txheej txheem kev faib tawm.
Cov yeeb nkab loj feem ntau muab raws li qhov tshwj xeeb no yog 3 nti (76.2 hli) sab nraud txoj kab uas hla suav nrog. Cov yeeb nkab hauv lwm qhov ntau thiab tsawg tuaj yeem muab tau yog tias cov yeeb nkab ua tau raws li tag nrho lwm cov kev cai ntawm qhov kev qhia no.
Cov cuab yeej cuab tam yuav tsum tsis txhob siv rau cov yeeb nkab nrog lub taub sab hauv tsawg dua 1/8 nti (3.2 mm) lossis thickness tsawg dua 0015 nti (0.4 mm). Tus neeg yuav khoom yuav tsum tau qhia txog sab nraud txoj kab uas hla thiab qhov tsawg kawg nkaus phab ntsa thickness ntawm qhov kev txiav txim thiab cov kab uas hla sab hauv yuav tsum tsis qhia.



SA 214 seamless Tubes tshuaj muaj pes tsawg leeg

Cov pa roj carbon, max%	0.18
Manganese,%	{{0}}.27 rau 0.63
Phosphorus, max,%	0.035
Sulfur, max,%	0.035

A214 Carbon Steel Thaum tshav kub kub Exchanger & Condenser Tubing Mechanical Properties

Element	A/SA 214
Tensile zog KSI (MPa)	47[325]
Yield zog KSI (MPa)	26[180]
Elongation min. %	Ntau dua lossis sib npaug li 35%
Hardness	Tsawg dua lossis sib npaug rau 72 HRB

SA214 Alloy Steel Boiler Tube

Gnee A214 seamless steel yeeb nkab xa

Gnee Steel muaj 10 kub dov seamless steel yeeb nkab ntau lawm kab thiab 5 txias-draw seamless steel yeeb nkab ntau lawm kab. Muaj peev xwm tsim cov kav dej seamless ntawm ntau yam specifications thiab cov ntaub ntawv. Cov khoom siv dav siv hauv roj av, hluav taws xob hluav taws xob, tshuaj lom neeg kev lag luam, thee, tshuab thiab lwm yam.

Gnee Factory ib puag ncig

FAQ

Vim li cas thiaj xaiv Gnee?
Nrog peb, koj yuav tau txais tus nqi sib tw tshaj plaws, lav zoo, lav kev xa khoom thiab kev pab cuam tom qab muag.

Koj puas yog cov chaw tsim khoom?
Yog lawm, peb yog cov chaw tsim khoom thiab lub tuam txhab paub zoo nrog kev pib ntxov hauv Tuam Tshoj txoj kev lag luam steel.

Koj cov khoom puas tuaj yeem kho tau?
Yog lawm, peb tuaj yeem tsim thiab ua raws li koj xav tau.

Cim npe nrov: Tuam Tshoj astm a214 kub exchanger yeeb nkab manufacturers, lwm tus neeg, Hoobkas
