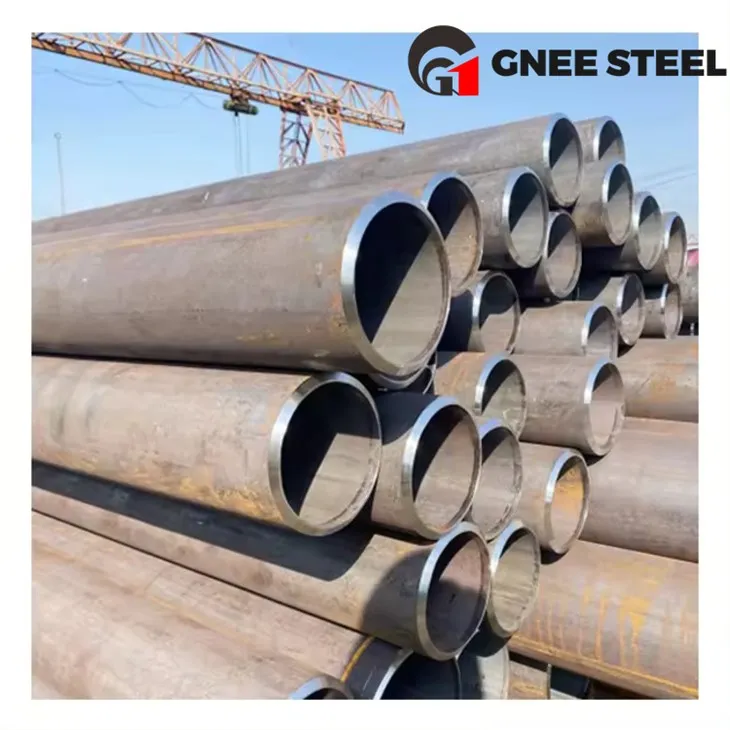

A213 T5 Kub-resistant Tube
Peb tshwj xeeb hauv kev muab precision engineered A213 T5 alloy steel seamless kav rau ntau yam kev siv engineering.
C Tsawg dua lossis sib npaug rau {{0}}.30~0.60 Mn{{10}}.025 P Less tshaj los yog sib npaug rau 0.025 S Less tshaj los yog sib npaug rau 0.025 Si Less tshaj los yog sib npaug rau 0.45 ~ 0.65 yog ntxiv rau lub A213 T5 tshav kub exchanger raj kom lub zog thiab hardenability ntawm lubA213 T5 seamless raj. Qhov loj ntawm qhov sib ntxiv tuaj yeem ua rau muaj qhov kub siab lossis ruaj khov ntawm qhov kub thiab txias.
Yog li ntawd, A213 T5 seamless steel yeeb nkab muaj cua sov zoo thiab corrosion kuj nyob rau hauv kev siv, yog li A213 T5 siab kub yeeb nkab yog dav siv nyob rau hauv roj av, tshuaj kev lag luam, hluav taws xob fais fab, natural gas, dej, metallurgy, shipbuilding, kev tsim kho thiab lwm qhov chaw uas yuav tsum tau. kub siab zog.
Ua Haujlwm Tiv tauj peb:sales@gneetube.com
Specification ASTM A213 T5 / ASME SA213 T5 Alloy Steel Tube:
| Loj (Seamless) | 6.35mm mus rau 101.60mm od |
| Cov qauv | ASTM A213, ASME SA213 |
| Cov qauv sib npaug | EN 10216-2, ASTM A335, GOST 550-75, WN 1.7362, K41545 |
| Khoom siv | P5, K41545 |
| Cov khoom sib npaug | T5, 15 Ch5M |
| Hom | Seamless |
| Tshwj xeeb hauv | Loj Diameter Loj |
| Sab nrauv Dimensions | 6-2500 hli; WT: 1-200mm |
| Phab ntsa Thickness | Teem sijhawm 3mm txog 15mm. |
| Ntev | max 1 ~ 12m |
| Teem caij | TSI, SCH40, SCH80 |
| Daim ntawv | Round, Square, Rectangular, Hydraulic thiab lwm yam. |
| Ntev | Ib qho Random, Ob Chav Random & Txiav Ntev. |
| Tubing End | Plain End, Beveled End, Treaded. |
A213 T5 Alloy steel yeeb nkabTshuaj muaj pes tsawg leeg
| Qib | Chemical Composition (%) | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| A213 T5 | Tsawg dua lossis sib npaug rau 0.15 | 0.30-0.60 | Tsawg dua lossis sib npaug rau 0.025 | Tsawg dua lossis sib npaug rau 0.025 | Tsawg dua lossis sib npaug rau 0.50 | 4.00-6.00 | 0.45-0.65 |
A213 T5 Carbon steel yeeb nkab Mechanical Properties
| Qib | Tensile zog (Mpa), Min. | Yield zog (Mpa), Min. | Elongation,% | Hardness, HB |
| T5 / 5B / 5C | 415 nqi | 205 feeb | 30 feeb | 179 max ua |
A213 T5 preservative steel yeeb nkabUa siab ntev
| Sab nraud txoj kab uas hla | OD Tolerance | WT kam rau ua | Ovality kam rau ua | Txiav Length Tolerance |
| OD Tsawg dua lossis sib npaug li 12,7 mm | ± 0, 13 mm | ± 15 % | – | {0}}, 18 mm, – 0 mm |
| 12,7 hli < OD Tsawg dua los yog sib npaug rau 38,1 hli | ± 0, 13 mm | ± 10 % | max, 1,65 mm | {0}}, 18 mm, – 0 mm |
| 38, 1 hli < OD Tsawg dua los yog sib npaug rau 88, 9 mm | ± 0, 25 hli | ± 10 % | max, 2, 41 mm | {0}}, 76 mm, – 0 mm |
A213 T5 Kub kub steel yeeb nkab
Vim li cas thiaj xaiv peb
gnee yog ib qho ntawm cov tuam txhab kev lag luam hauv Suav teb, cov khoom xa tawm thiab cov khoom lag luam steel gnee tau cog lus los muab cov neeg siv khoom zoo tshaj plaws thiab cov kev pabcuam siab tshaj plaws. Lub khw tseem ceeb yog los ntawm 60 lub teb chaws.
Gnee Company cov khoom
FAQ
1.One-Stop Solution
Peb muaj ntau txhiab qhov kev tsim khoom tag nrho, los ntawm cov khoom siv raw mus rau cov khoom tiav.
2. Tus nqi sib tw
Kev yuav khoom loj, txheej txheem tsim khoom thiab kev tswj xyuas kom zoo ua rau peb cov nqi sib tw.
3. Kev xa khoom sai
Xyoo ntawm kev paub txog kev xa tawm tuaj yeem pab peb tswj lub sijhawm thauj mus los kom raug.
4. Kev Tswj Xyuas Zoo
Cov txheej txheem ntau lawm, kev tswj hwm kev tswj hwm, cov cuab yeej kuaj xyuas cov khoom tshwj xeeb customization.
Cim npe nrov: a213 t5 tshav kub-resistant raj, Tuam Tshoj a213 t5 tshav kub-resistant raj manufacturers, lwm tus neeg, Hoobkas
