ASTM A790 UNS S32750 Duplex Seamless Yeeb Nkab
GNEE's ASTM A790 Super Duplex S32750 Yeeb Nkab yog tsim los siv cov ntaub ntawv zoo raw khoom los ntawm cov neeg muag khoom muaj kev ntseeg siab thiab ntseeg siab hauv kev lag luam. Cov khoom lag luam raug kev sim xws li kev ntsuam xyuas flattening, hardening tests, hydrostatic tests, tensile tests thiab non-destructive electronic tests kom paub tseeb tias lawv ua raws li cov yam ntxwv.
ASTM A790 UNS S32760 stainless hlau kavNtxiv nrog rau muaj 25% chromium, 4% molybdenum thiab 7% npib tsib xee, kuj muaj ntau cov austenite stabilizing cov nitrogen, yog li lawv muaj kev tiv thaiv zoo rau chloride pitting thiab crevice corrosion yaig.
ASTM A790 S32750 super duplex stainless hlau yeeb nkab ua ke nrog lub zog txhua yam, feem ntau mus txog 570 MPa yield zog thiab zoo ductility, nrog zoo heev corrosion kuj nyob rau hauv marine ib puag ncig. ASTM A790 S32750 corrosion resistant yeeb nkab yog li no dav siv nyob rau hauv seawater desalination khoom. , marine applications, chemical txheej txheem siab hlab ntsha, piping thiab heat exchangers.
Ua Haujlwm Tiv tauj peb:sales@gneetube.com
Super Duplex Stainless Hlau S32750 Yeeb Nkab Khoom Qhia
ASTM A790 UNS S32750 Seamless Pipe Analysis Specification
| International Specification | ASTM A 789 ASME SA 789 Txheem: |
| Txheem Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Loj |
OD: 4-219mm Phab ntsa Thickness: 0.5 mus rau 20mm |
| WT | SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| kev tsim khoom | Seamless / ERW / EFW / Welded / Fabricated / CDW / LSAW / Seam-Welded / Redrawn |
| Daim ntawv | Hloov, Square, Rectangular |
| Ntev | Ib qho Random, Ob Chav Random & Yuav Tsum Tau Ntev Kawg: Plain End, Beveled End, Treaded |
| Kev Xa Khoom | Annealed thiab Pickled, Kub Tiav, Polished, Bright Annealed, Txias Drawn |
| Ntim |
Ply Ntoo Boxes PE Fabric Bundles Steel Strips Bundled Txheem seaworthy export ntim Hnab yas, los yog raws li xav tau |
Super Duplex 2507 Pipes Cov Tshuaj Muaj Zog:
| Qib | C Tsawg dua los yog sib npaug | Mn Tsawg dua lossis sib npaug | P Tsawg dua lossis sib npaug | S Tsawg dua los yog sib npaug | Si Less than los sib npaug | Ni | Cr | Mo | N | Cu |
| S32750 | 0.03 | 1.20 | 0.035 | 0.02 | 0.80 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | 0.24-0.32 | 0.5 |
Mechanical Properties ntawm Super Duplex S32750 Pipes thiab Tubes:
| Mechanical zog | Tensile, min, ksi [MPa] | Yield, min, ksi [MPa] | Elongation,% (min) | Hardness, HB (max) |
| S32750 | 116 [800] | 80 [550] | 15 | 300 |

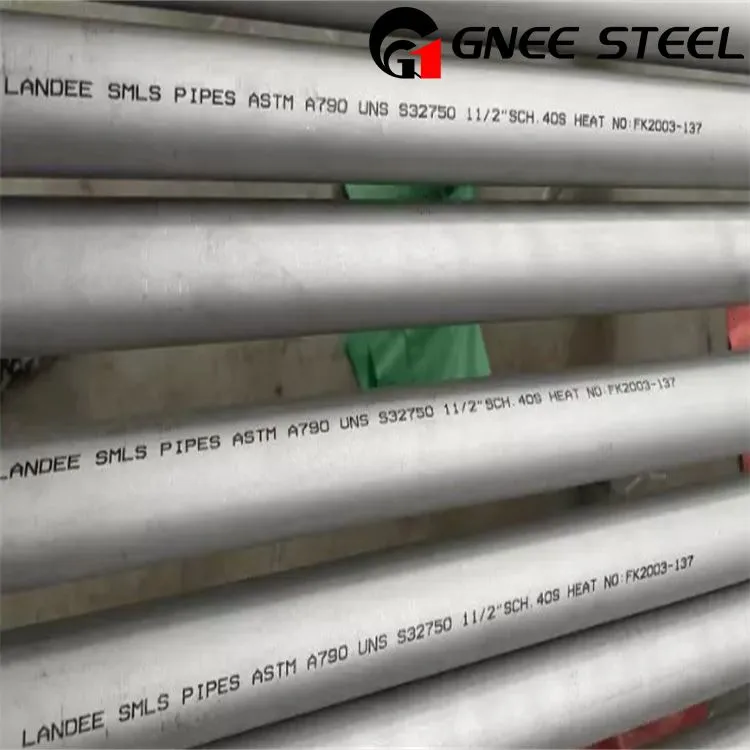

ASTM A790 UNS S32750 yeeb nkab
Qhov zoo ntawm GNEE
Peb cov kav dej thiab cov raj muaj ntau yam kev siv hauv ntau lub lag luam, suav nrog cov roj thiab roj, petrochemical thiab kev tsim kho kev lag luam. Thiab peb tuaj yeem muab cov khoom sib txawv rau ntau lub hom phiaj (xws li kev tiv thaiv corrosion).
GneeGroup koom nyob rau hauv lub exhibition
FAQ
1.Q.Koj qhov zoo dua yog dab tsi?
A. Kev ua lag luam ncaj ncees nrog tus nqi sib tw thiab kev pabcuam tshaj lij ntawm cov txheej txheem xa tawm.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A. Yog, peb tuaj yeem tsim thiab ua raws li koj xav tau.
3. Q. Koj puas muaj kev tswj xyuas qhov zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo.
Cim npe nrov: astm a790 uns s32750 duplex seamless yeeb nkab, Tuam Tshoj astm a790 uns s32750 duplex seamless yeeb nkab manufacturers, lwm tus neeg, Hoobkas
