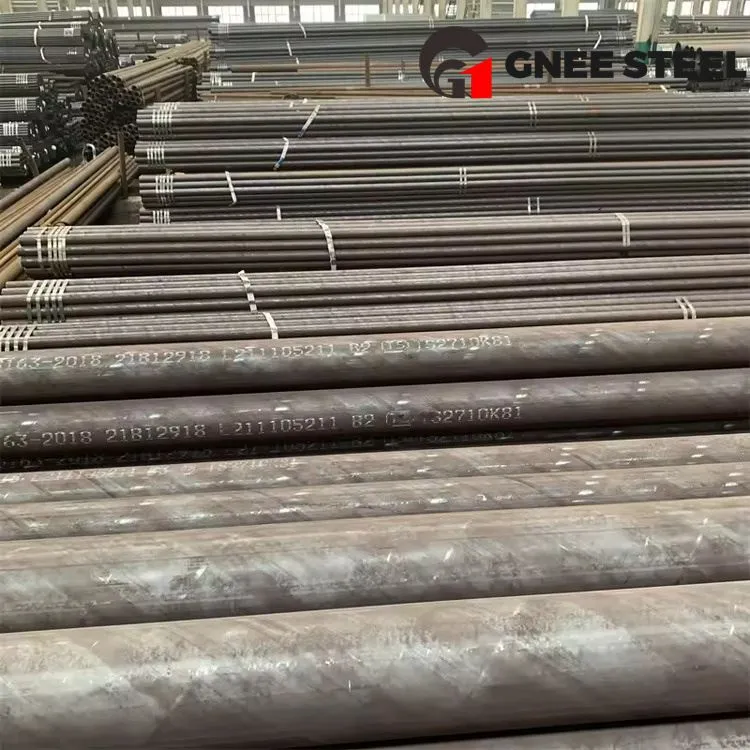

DIN 2448 ST 37 Seamless Steel Yeeb Nkab
DIN 2448 ST 37 Seamless Carbon Steel Yeeb Nkab yog tsim los siv cov khoom zoo zoo raw khoom los ntawm cov neeg muag khoom muaj kev ntseeg siab thiab ntseeg siab ntawm kev lag luam. Cov khoom no tau txais ntau yam kev kho cua sov thiab cov txheej txheem kuaj xyuas kom paub tseeb tias lawv ua raws li cov khoom teev tseg.
DIN 2448 ST 37 Seamless rajyog tsim los ntawm carbon, silicon, nitrogen, phosphorus thiab sulfur thiab muaj nyob rau hauv diameters li ntawm 10.2 hli mus rau kwv yees li 108 hli, nrog txias-draw tube phab ntsa thicknesses txog 12.5 hli. Txhawm rau kuaj xyuas qhov nruj ntawm cov kav hlau me me raws li DIN 2448 ST 37, yuav tsum tau kuaj qis dua lossis ntsuas hluav taws xob.
DIN 2448 ST 37 boiler raj yog siv nyob rau hauv boiler-theem daim ntaub ntawv nyob rau hauv corrosive ib puag ncig thiab nrog nruj high-temperature kev ua tau zoo, xws li boilers, tshav kub exchangers thiab fais fab nroj tsuag, vim lawv tsis kam mus rau kub, siab thiab corrosion.
Ua Haujlwm Tiv tauj peb:sales@gneetube.com
Cov ntaub ntawv khoom
DIN 2448 ST 37 Yeeb Nkab Specifications
| Txheem Specification | DIN 2391 EN 10305 ST 37 |
| Codes thiab Standards |
ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN |
| Qhov ntev | ASME / ANSI B36.10 / 19 |
| Txheem Loj | 1/2 "NB to 36" NB (LSAW, SSAW, HSAW) |
| Phab ntsa Thickness | 3-12 hli |
| Cov txheej txheem kav dej | SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Kev tsim cov txheej txheem | Seamless / ERW / Welded / Fabricated / CDW / EFW |
| Muaj Cov Duab | Round, Ib nrab Round, Square, Rectangular los yog Custom shape |
| Ntev | 3 txog Max18 Meters lossis kev cai |
| Cov yeeb nkab kawg | Beveled kawg, Plain End, Treaded |
| Daim Ntawv Pov Thawj | EN 10204 3.1 B |
DIN 2448 St 37 steel Tube Chemical Compatibility Chart
| Qib | C% | P% | S% | N% |
| DIN 2448 St37 0 | 0,17 | 0,040 | 0,040 | 0,009 |
DIN 2448 ST 37 carbon seamless steel yeeb nkab Mechanical Properties
| Hom | Qib | Upper yield limit Re min rau phab ntsa thickness hauv mm min | Tensile zog Rm MPa | Elongation A% min | |||
DIN St37. 0 |
16 | 16 40 | 40 65 | 1 | t | ||
| DIN 2448 St37 0 | 235 | 225 | 215 | 350-480 | 25 | 23 | |
DIN 2448 ST 37 carbon steel yeeb nkab
Vim li cas thiaj xaiv peb
Ua cov kav hlau tsis muaj steel thiab cov pa roj carbon steel yeeb nkab ntawm cov khoom sib txawv, txhawb kev hloov kho ntawm ntau qhov ntau thiab tsawg thiab cov qauv, xws li: ASTM A106 yeeb nkab, seamless stainless hlau yeeb nkab, A106 yeeb nkab, ASTM A53 yeeb nkab, CS yeeb nkab, cov yeeb nkab uas tsis tshua muaj carbon steel, dub carbon tsawg. steel yeeb nkab, A249 stainless hlau Pipes, qis carbon steel kav, thiab lwm yam, tau raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam thoob ntiaj teb.
Gnee Company Ib puag ncig
FAQ
1.Q.Koj qhov zoo dua yog dab tsi?
A. Kev ua lag luam ncaj ncees nrog tus nqi sib tw thiab kev pabcuam tshaj lij ntawm cov txheej txheem xa tawm.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A. Yog, peb tuaj yeem tsim thiab ua raws li koj xav tau.
3. Q. Koj puas muaj kev tswj xyuas qhov zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo.
Cim npe nrov: din 2448 st 37 seamless steel yeeb nkab, Tuam Tshoj din 2448 st 37 seamless steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
