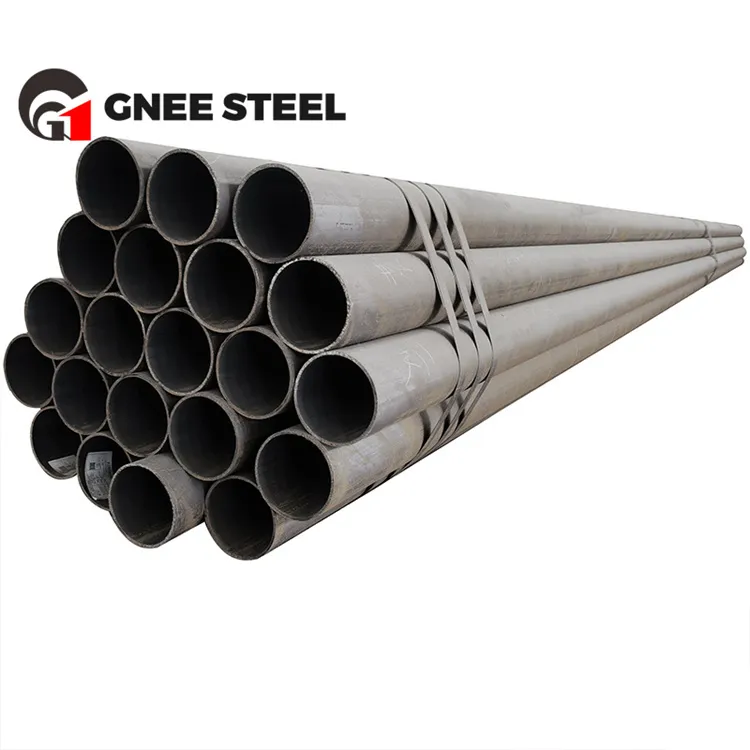

ASTM A210 Qib A1 Seamless Carbon Tubes
ASTM A210 Qib A1 Seamless Steel Boiler Tube
ASTM A210 yog ib hom carbon steel yeeb nkab siv dav hauv ntau yam kev lag luam.
Los ntawm kev xav ntawm cov tshuaj muaj pes tsawg leeg, ASTM A210 carbon steel yeeb nkab yog tsim los ntawm carbon (Less tshaj los yog sib npaug rau 0.35%), manganese (0.29~1. 06%), phosphorus (Less tshaj los yog sib npaug rau 0.035%), sulfur (Less dua los yog sib npaug rau 0.035%) thiab silicon (Ntau dua los yog sib npaug rau 0.10%). Qhov kev sib xyaw tshwj xeeb ntawm cov khoom siv tshuaj no ua kom lub cev muaj zog thiab lub zog ntawm cov yeeb nkab steel.
Nyob rau hauv cov nqe lus ntawm lub cev lub zog, lub tensile lub zog ntawm ASTM A210 seamless steel yeeb nkab yog ntau tshaj los yog sib npaug rau 485, lub zog tawm los yog ntau tshaj los yog sib npaug rau 275, lub elongation yog ntau tshaj los yog sib npaug rau 30, thiab lub hardness yog tsawg dua. los yog sib npaug rau 89HRB. Cov yam ntxwv no tso cai rau cov kav hlau kom muaj kev ruaj ntseg thaum raug siab thiab khoov, ua rau lawv haum rau ntau qhov chaw ua haujlwm nyuaj.
Txoj kev tsim khoom ntawmASTM A210 qis carbon steel yeeb nkabyog kub dov txheej txheem, thiab tus me nyuam raws li txoj cai yog kub dov kub kho. Txoj kev tsim khoom no ua kom cov yeeb nkab steel yog kub-dov thaum lub sijhawm tsim khoom thiab kho cua sov ua ntej xa khoom, yog li ua kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm nws lub cev.
Feem ntau, ASTM A210 tshav kub tsis kam yog vim nws cov tshuaj lom neeg zoo heev thiab lub cev muaj zog, cov txheej txheem tsim khoom ruaj khov, thiab ntau yam kev siv.
ASTM A210 Qib A1 & C Boiler Tube Chemical Composition (%)
| Txuj | Qib | chemical muaj pes tsawg leeg: | ||||
| C | Si | Mn | P | S | ||
| ASTM A 210 Cov Lus Qhia | C | Tsawg dua lossis sib npaug rau 0.35 | Ntau dua lossis sib npaug rau 0.10 | 0.29-1.06 | Tsawg dua lossis sib npaug rau 0.035 | Tsawg dua lossis sib npaug rau 0.03 |
Mechanical Properties ntawm ASTM A210 yeeb nkab
| Qib | Tensile zog (Mpa) |
Tawm taw tes (Mpa) tsis tsawg dua |
Elongation (%) tsis tsawg dua |
Kev cuam tshuam (J) tsis tsawg dua |
Hardness tsis tsawg dua |
| A210C/SA-210C | Ntau dua lossis sib npaug rau 485 | 275 | " | 89 PAB |
Tolerances ntawm Length
| Txoj kev ntawm Tsim |
Sab nraum Txoj kab uas hla, hauv. [mm] |
Txiav Length, hauv. [mm] | |
| Tshaj | Hauv qab | ||
| Seamless, kub-tiav | Txhua qhov ntau thiab tsawg | 3 ⁄ 16 [5] | 0 [0] |
| Seamless, txias-tiav | Hauv qab 2 [50.8] | 1 ⁄ 8 [3] | 0 [0] |
| 2 [50.8] thiab ntau dua | 3 ⁄ 16 [5] | 0 [0] | |
| 2 [50.8] thiab ntau dua | 3 ⁄ 16 [5] | 0 [0] | |
ASTM A210 Qib A1 Carbon Steel Tubes
gnee lub tuam txhab nruj me ntsis siv 6S kev tswj hwm thiab dhau ISO9001 thoob ntiaj teb kev ua haujlwm zoo ntawv pov thawj thiab GJB9001B-2009 lub teb chaws cov tub rog tus qauv kev tswj xyuas qhov system ntawv pov thawj hauv xyoo 2016. Nws muaj cov khoom zoo thiab cov nqi qis steel yeeb nkab, ntau txhiab tons ntawm cov khoom muag , thiab muaj nws tus kheej ua cov nroj tsuag.
Gnee Company Team
Cim npe nrov: Tuam Tshoj astm a210 qib a1 seamless carbon raj, Tuam Tshoj astm a210 qib a1 seamless carbon raj manufacturers, lwm tus neeg, Hoobkas
