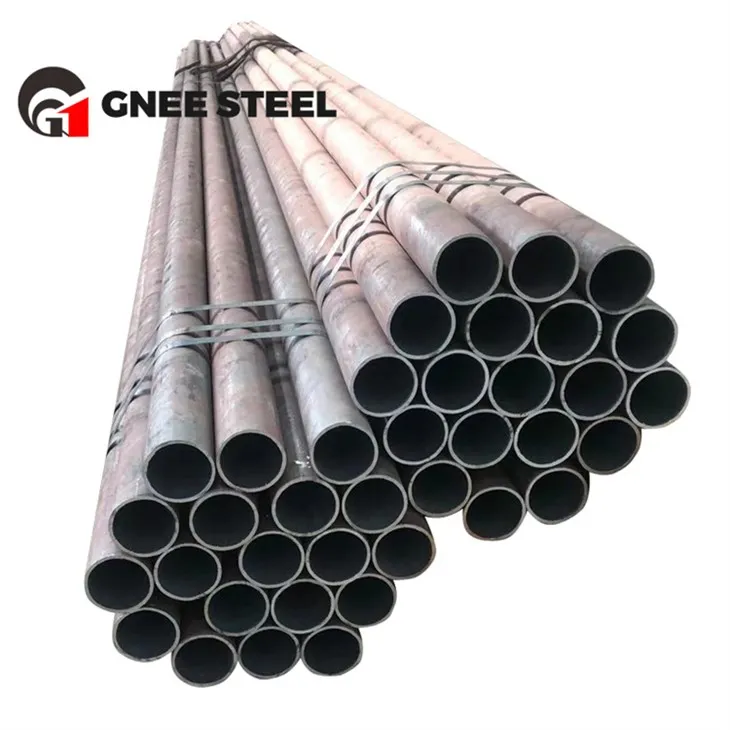

DIN 17175 19Mn5 Heat Resistant Steel Yeeb Nkab
DIN 17175 qib 19Mn5 carbon steel seamless yeeb nkab yog tus nqi qis, qis carbon steel yeeb nkab nrog cov ntsiab lus carbon ntawm 0.17% thiab 0.22% thiab manganese cov ntsiab lus ntawm 10% mus rau 13. %. Cov yeeb nkab steel no yooj yim tsim thiab tsim rau DIN specifications.
DIN 17175 19Mn5 alloy steel yeeb nkab yog seamless steel yeeb nkab haum rau qhov kub thiab txias. Nws qhov kev pabcuam kub yog feem ntau ntawm 450 degree thiab 600 degree.
DIN 17175 19Mn5 Seamless Tubes feem ntau yog siv los tsim cov kub kub thiab siab siab chav boilers thiab superheaters. Lawv muaj cov yam ntxwv ntawm lub zog ruaj khov, lub zog nkag, ruaj khov deformation tus nqi thiab lub koom haum zoo. Lawv tuaj yeem tiv taus kev siv mus ntev hauv qhov chaw hnyav ntawm qhov kub thiab txias. Kev ua haujlwm ruaj khov.
Sch40 DIN17175 19Mn5 Seamless Steel Pipes Chemistry Composition
|
C, % |
Si,% |
Mn,% |
P, % |
S, % |
Cr,% |
|
0.17-0.22 |
0.30-0.60 |
1.00-1.30 |
0.040 max |
0.040 max |
0.30 max |
Mechanical Properties
|
Tensile zog, MPa |
Yield zog, MPa |
Elongation,% |
|
510-610 |
310 min |
19 feeb |
DIN 17175 19Mn5 Carbon Steel yeeb nkab
Sab nraud Diameter & Tolerance
|
Sab nraud txoj kab uas hla, mm |
Kev kam rau siab,% |
|
OD Tsawg dua lossis sib npaug rau 120 |
± {{0}}.6, 0.25mm min |
|
OD>120 |
±0.75 |
Txheem: DIN 17175
Qib: 19Mn5
Loj: OD ({{0}}mm) x WT (0.5-15mm)
Sab nraud Dimensions: 4.0mm - 60.0mm
Phab ntsa Thickness: 0.5mm - 8mm
Ntev: max 6000mm
Vim li cas thiaj xaiv peb
1. Qauv tuaj yeem xaj.
2. Peb muaj tag nrho cov Tshuag, thiab cov khoom tuaj yeem xa tuaj tsis pub dhau 14 hnub. Ntau hom kev xaiv rau koj xaiv.
3. OEM thiab ODM xaj tau txais. Txhua yam logo luam tawm lossis tsim muaj.
4. Peb muaj zog ntawm Zoo Zoo / Hoobkas Nqe / Cov Lus Teb Ceev / Kev Pabcuam Zoo
Gnee Factory ib puag ncig
FAQ
Q.Kuv tuaj yeem ntseeg koj li cas?
A.Peb xav tias kev ncaj ncees yog qhov tseem ceeb ntawm peb lub tuam txhab, koj tuaj yeem paub nws tus kheej kom koj tuaj yeem tshawb xyuas peb cov credit.
Q.Koj cov khoom puas tuaj yeem hloov kho?
A.Peb tuaj yeem ua rau feem ntau arades thiab specifications.meat koj qhov kev xav tau sib txawv.
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo.
Cim npe nrov: din 17175 19mn5 kub resistant steel yeeb nkab, Tuam Tshoj din 17175 19mn5 kub resistant steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
