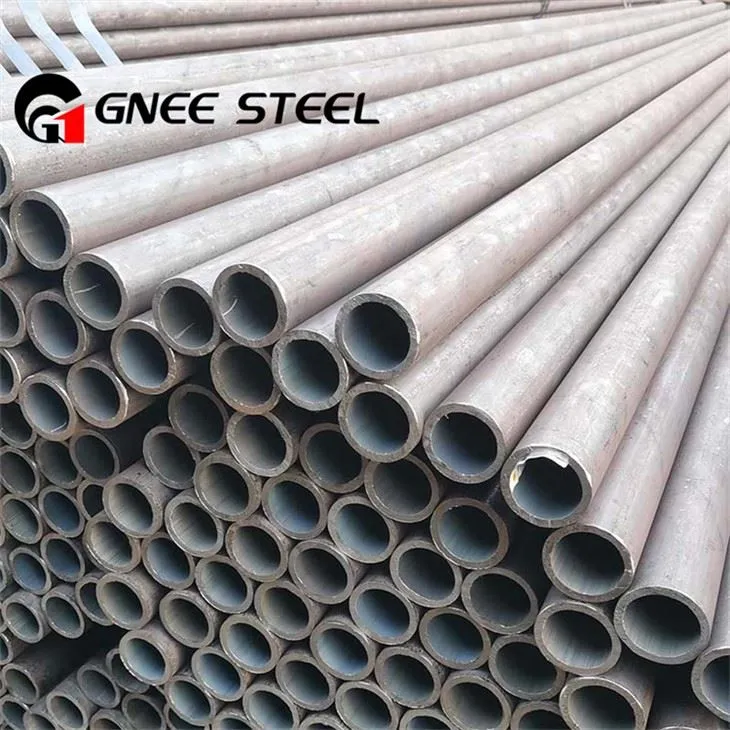

DIN 17175 15Mo3 Alloy Steel Yeeb Nkab
DIN 17175 15Mo3 alloy steel yeeb nkab yog seamless steel yeeb nkab ua raws li German Industrial Standards (DIN). Nws yog tsuas yog siv rau cov khoom siv siab nyob rau hauv qhov kub thiab txias, xws li boilers thiab superheaters. Cov yeeb nkab steel no muaj qhov kub thiab txias ua haujlwm zoo thiab cov khoom siv kho tshuab zoo, thiab haum rau ntau qhov kub thiab txias ua haujlwm ib puag ncig.
Lub ntsiab chemical Cheebtsam ntawm DIN 17175 15Mo3 alloy steel yeeb nkab muaj xws li carbon (C), silicon (Si), manganese (Mn), phosphorus (P), sulfur (S), thiab alloying ntsiab xws li chromium (Cr) thiab molybdenum (Mo). Ntawm lawv, qhov sib ntxiv ntawm chromium thiab molybdenum txhim kho corrosion kuj thiab high-temperature zog ntawm cov yeeb nkab steel.
Cov hauv qab no yog qee qhov kev ua haujlwm tsis zoo ntawm DIN 17175 15Mo3 alloy steel yeeb nkab:
Yield zog: feem ntau nyob rau hauv qhov ntau ntawm 310-480 MPa
Tensile Strength: Feem ntau nyob rau hauv thaj tsam ntawm 480-630 MPa
Elongation: feem ntau nyob rau hauv qhov ntau ntawm 20-22%
Impact Toughness: Ntawm -20 degree, cuam tshuam lub zog nqus feem ntau yog siab dua 47 J
15Mo3 yeeb nkab tshuaj lom neeg muaj pes tsawg leeg
| Txuj | Qib | Chemical Components (%) | ||||||
| C | Si | Mn | P | S | Mo | Cr | ||
| DIN17175 | 15 hmo 3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | Tsawg dua lossis sib npaug rau 0.035 | Tsawg dua lossis sib npaug rau 0.035 | 0.25-0.35 | / |
Qib 15Mo3 Seamless Boiler Tube Mechanical Properties
| Txuj | Qib | Mechanical zog | ||
| Tensile zog (Mpa) | Yield zog (Mpa) | Elongation (%) | ||
| DIN17175 | 15 hmo 3 | 450-600 | Ntau dua lossis sib npaug li 270 | Ntau dua lossis sib npaug 22 |

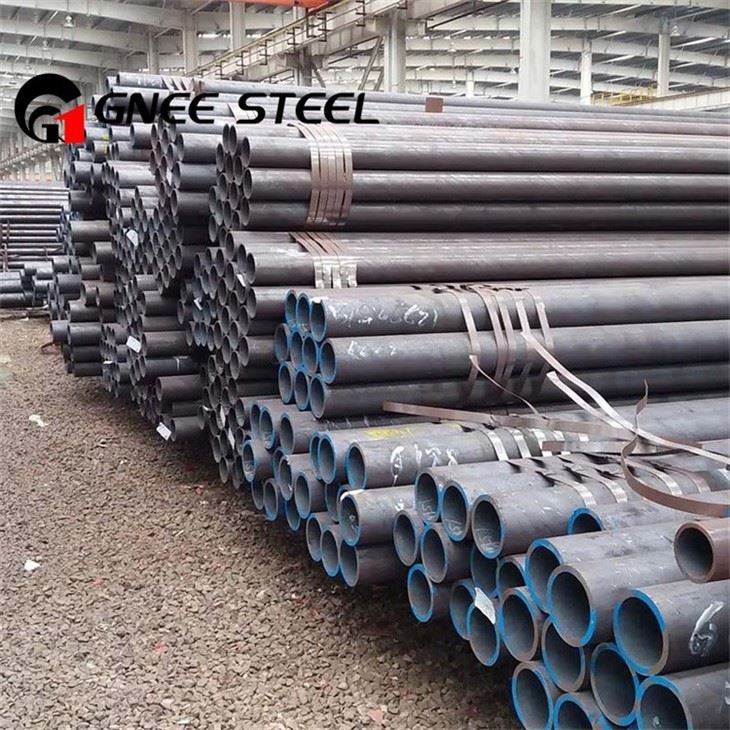

DIN 17175 Seamless Steel Yeeb Nkab
Txheem: DIN 17175
Loj: 19mm -350mm
WT: 1.5mm -50mm
Puab: Round
Ntau hom: Txias kos los yog Kub dov
Length: Ib qho random ntev / Ob chav random ntev los yog raws li tus neeg thov kev thov max ntev yog 10m
Vim li cas thiaj xaiv peb
Txhua tus txheej txheem raug tshuaj xyuas los ntawm cov kws tshuaj ntsuam xyuas zoo los xyuas kom meej qhov zoo ntawm txhua yam khoom.
Pab neeg ntim khoom ua haujlwm kom muaj kev nyab xeeb ntawm txhua pob.
Kev txiav txim mus sib hais tuaj yeem ua tiav hauv ib lub lis piam.
Cov qauv muaj nyob ntawm koj qhov kev thov.

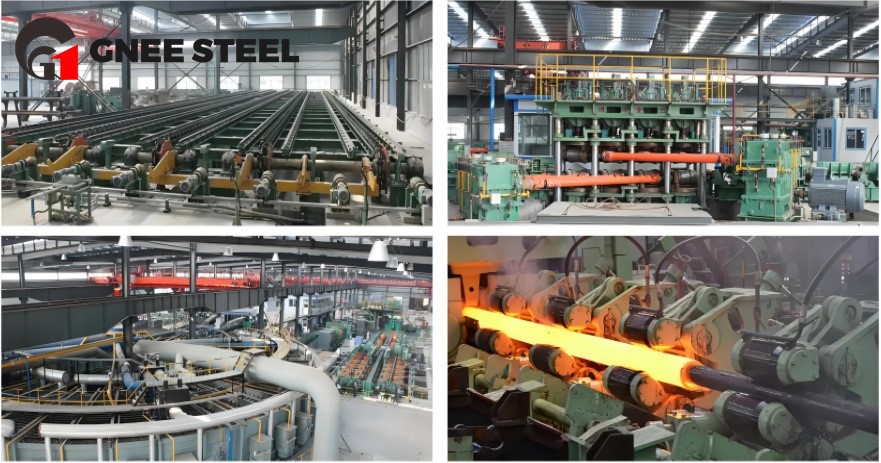

Gnee Factory ib puag ncig
FAQ
1. Q. Koj qhov zoo yog dab tsi?
A: Cov khoom lag luam zoo, tus nqi sib tw thiab kev pabcuam xa tawm.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A. Yog, peb tuaj yeem tsim thiab ua raws li koj xav tau.
3. Q. Kuv tuaj yeem kawm li cas txog koj qhov kev lees paub zoo?
A. Mus ntsib peb lub Hoobkas yog qhov zoo tshaj plaws kom nkag siab ib leeg.
