A333 GR.6 carbon steel yeeb nkab
gnee tsim thiab khoom siv ASTM A333 qib 6 carbon steel seamless kav, koj tuaj yeem tshawb nrhiav txhua qhov loj thiab qib ntawm cov kav hlau seamless los sib piv cov nqi.
A333 GR.6 yeeb nkab yog cov khoom siv feem ntau nyob rau hauv qhov kub thiab txias siab tshaj -45 degree, nrog rau qhov tsawg kawg nkaus lub zog ntawm 240 MPa thiab lub zog tensile ntawm 415 MPa. A333 GR.6 Carbon Steel Seamless Pipe muaj lub zog tshwj xeeb thiab ua haujlwm ntev thiab yog tsim los tiv taus qhov kub thiab txias tsis muaj kev tawg lossis deforming, ua rau A333 GR.6 Chromoly Alloy Yeeb Nkab zoo tagnrho rau cov haujlwm loj qhov kev ntseeg siab yog qhov tseem ceeb xaiv.
A333 carbon alloy steel yeeb nkabkuj muaj kev tiv thaiv corrosion zoo heev, tuaj yeem tiv taus siab pH qhov tseem ceeb, thiab tsim nyog siv rau hauv cov cheeb tsam acidic, pab tiv thaiv xeb ntawm cov yeeb nkab thiab ua kom ntseeg tau tias cov yeeb nkab tseem muaj kev nyab xeeb hauv ib puag ncig lossis kev nyab xeeb. A333 GR.6 cryogenic hlab yog nquag siv hauv kev lag luam uas xav tau kev ua haujlwm zoo hauv cov cheeb tsam hnyav, xws li roj av, roj thiab hluav taws xob tsim kev lag luam.
Tiv tauj peb rau tus nqi:sales@gneetube.com
gnee Supply Ranges
| Specifications | ASTM A333 ASME SA333 Cov Lus Qhia |
| Qhov ntev | ASTM, ASME thiab API |
| Teem caij | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, Tag nrho cov sij hawm |
| Hom | Seamless / ERW / Welded / Fabricated |
| Daim ntawv | Hloov, Hydraulic thiab lwm yam |
| Ntev | Min 3 Meters, Max18 Meters, los yog raws li tus neeg yuav tsum tau muaj |
| Xaus | Plain End, Beveled kawg, Treaded |
| Txheej txheej | 3 LPE, FBE, Galvanized |
| Tubes Ntim | Loose / Bundle / Ntoo Pallet / Ntoo lub thawv-a / Yas Ntaub qhwv / Yas Kawg Caps / Beveled Protector |
| Kev thauj mus los | Los ntawm Txoj Kev - Tsheb / Tsheb ciav hlau, Los ntawm Hiav Txwv - tawg-ntim Pas Dej / FCL (Full Container Load) |
A333 GR 6 Tshuaj muaj pes tsawg leeg yuav tsum muaj rau cov kav dej cryogenic
| Element | Composition, wt. % |
|---|---|
| C | Tsawg dua lossis sib npaug rau 0.30 |
| Mn | 0.29-1.06 |
| P | Tsawg dua lossis sib npaug rau 0.025 |
| S | Tsawg dua lossis sib npaug rau 0.025 |
| Si | Ntau dua lossis sib npaug rau 0.10 |
| Ni | Tsawg dua lossis sib npaug rau 0.40 |
| Cr | Tsawg dua lossis sib npaug rau 0.30 |
| Cu | Tsawg dua lossis sib npaug rau 0.40 |
| V | Tsawg dua lossis sib npaug rau 0.08 |
| Nb | Tsawg dua lossis sib npaug rau 0.02 |
| Mo | Tsawg dua lossis sib npaug rau 0.12 |
A333 GR 6 Chromium Molybdenum Alloy Tube Mechanical Properties
| Tensile Properties | Kev xav tau (Longitudinal) |
Kev xav tau (Transverse) |
|---|---|---|
| Tensile zog min. MPa [ksi] |
415 [60] | 415 [60] |
| Yield zog min. MPa [ksi] |
240 [35] | 240 [35] |
| Elongation hauv 2", min.% |
30 | 16.5 |
333 Gr.6 Seamless Alloy Yeeb Nkab Phab Ntsa Thickness
| ASTM A333 Qib 6 Phab Ntsa Thickness | ASTM A333 Qib 6 | ||
| hauv. | mm | Ntev | Transverse |
| 5/16 (0.312) | 8 | 30 | 16 |
| 9/32 (.281) | 7.2 | 28 | 15 |
| 1/4 (.250) | 6.4 | 27 | 15 |
| 7/32 (.219) | 5.6 | 26 | |
| 3/16 (.188) | 4.8 | 24 | |
| 5/32 (.156) | 4 | 22 | |
| 1/8 (.125) | 3.2 | 21 | |
| 3/32 (.094) | 2.4 | 20 | |
| 1/16 (.063) | 1.6 | 18 | |
A333 Gr.6 Seamless Yeeb Nkab OD
| Tshaj | ASTM A333 Qib 6 ASTM A333 Qib 6NPS [DN Designator] | Hauv qab | ||
| hauv. | mm | hauv. | mm | |
| 1/64 (0.0015) | 0.04 | 1/8 rau 1-1/2 [6 rau 40], incl | 1/64 (0.0015) | 0.04 |
| 1/32 (0.0031) | 0.08 | Tshaj 1-1/2 txog 4 [40 txog 100], incl | 1/32 (0.0031) | 0.08 |
| 1/16 (0.0062) | 1.06 | Tshaj 4 txog 8 [100 txog 200], incl | 1/32 (0.0031) | 0.08 |
| 3/32 (0.0093) | 2.04 | Tshaj 8 txog 18 [200 txog 450], incl | 1/32 (0.0031) | 0.08 |
| 1/8 (0.0125) | 3.02 | Tshaj 18 txog 26 [450 txog 650], incl | 1/32 (0.0031) | 0.08 |
| 5/32 (0.0156) | 4.00 | Tshaj 26 txog 34 [650 txog 859], incl | 1/32 (0.0031) | 0.08 |
| 3/16 (0.0187) | 4.08 | Tshaj 34 txog 48 [850 txog 1200], incl | 1/32 (0.0031) | 0.08 |

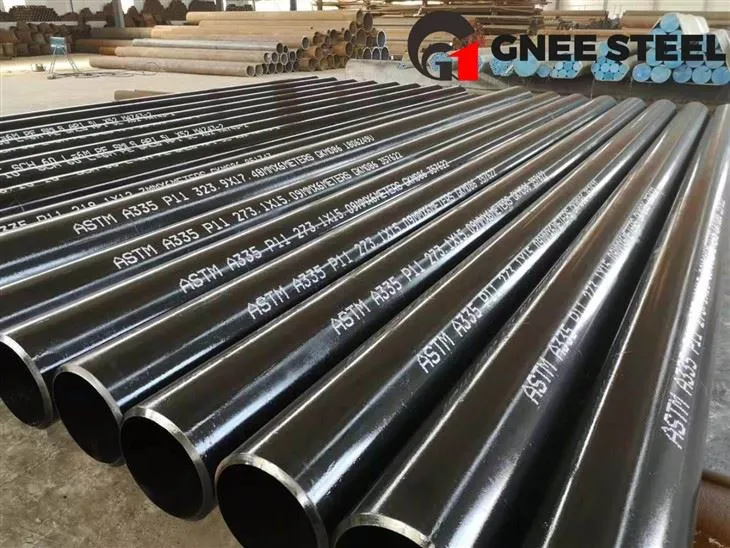

A333 GR.6 Tsawg-kub Seamless Steel Yeeb Nkab
Gnee khoom daim ntawv pov thawj
Gnee Company Team
Gnee Group tau koom nrog hauv NECC exhibition
Gnee Cov neeg tuaj xyuas
Gnee Factory ib puag ncig
Gnee Ntim thiab shipping
FAQ
1.Q.Koj qhov zoo dua yog dab tsi?
A. Kev ua lag luam ncaj ncees nrog tus nqi sib tw thiab kev pabcuam tshaj lij ntawm cov txheej txheem xa tawm.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A. Yog, peb tuaj yeem tsim thiab ua raws li koj xav tau.
3. Q. Koj puas muaj kev tswj xyuas qhov zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo.
Cim npe nrov: A333 GR.6 carbon steel yeeb nkab, Tuam Tshoj A333 GR.6 carbon steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
