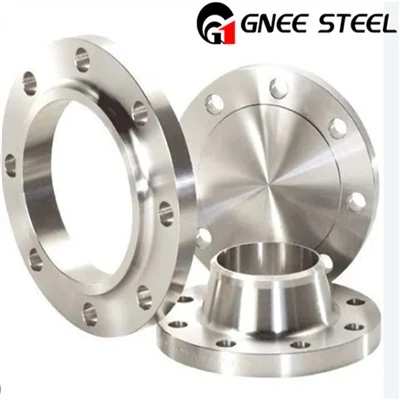

ASTM A182 F55 Super Duplex Flange
GNEE yog ib tus neeg muag khoom paub zoo, chaw tsim khoom thiab xa tawm ntawm Super Duplex Flange tsim los ntawm cov khoom zoo raw khoom. Peb ua raws li cov txheej txheem ntev rau Duplex Steel A182 F55 Flange kev tswj kom zoo, raws li peb ua tib zoo soj ntsuam tag nrho peb cov khoom raws li qhov tsis zoo.
ASTM A182 F55 stainless hlau flangesyog cov muaj zog thiab muaj zog tungsten kom muaj kev ruaj ntseg ntau dua rau cov khoom siv. ASTM A182 F55 duplex flange muaj carbon, manganese, phosphorus, sulfur, silicon, nitrogen, thiab tungsten. Cov ntsiab lus chromium yog 24%, cov ntsiab lus npib tsib xee yog 4.5%, thiab cov ntsiab lus molybdenum yog 3%, yog li nws muaj zog qaug zog zoo, thiab kev ua haujlwm zoo heev rau kev ntxhov siab corrosion tawg, crevices, pitting, yaig thiab corrosion nyob rau hauv ib puag ncig hnyav.
Ntxiv nitrogen rau cov hlau ntawm ASTM A182 F55 super duplex flange yuav ua rau cov qauv ua kom tawv, yog li ua rau nws lub zog tawm los. Nws tuaj yeem siv rau hauv qhov chaw siab thiab corrosive xws li nkoj, dej phwj kho, kev ua tshuaj, thiab lwm yam.
Ua Haujlwm Tiv tauj peb:sales@gneetube.com
ASTM A182 F55 Muaj Flange Cov ntaub ntawv khoom
ASTM A182 F55 stainless hlau forged flange Ntau lawm
| Specification | ASTM A182 / ASME SA182 F55 |
| UNS Qib | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Txuj | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, thiab lwm yam. |
| Loj | ½ "mus rau 24" |
| Qhov ntev | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, thiab lwm yam. |
| Chav kawm / Siab | 150 #, 300 #, 600 #, 900 #, 1500 #, 2500 #, PN6, PN10, PN16, PN25, PN40, PN64 thiab lwm yam. |
ASTM A182 F55 qhov muag tsis pom flange Tshuaj lom neeg muaj pes tsawg leeg
| Chemical Composition Limits | ||||||||||
| Qhov hnyav% | C | Mn | P | S | Si | Cr | Ni | Mo | N | W |
| Super Duplex F55 | 0.03 max | 1 00 max | 0.03 max | 0.01 max | 1 max | 24-26 | 4.5-6.5 | 3-4 | 0.25 | 0.08-0.20 |
ASTM A182 F55 Slip Flange Mechanical Properties
| Alloy | Tensile zog N / mm² | Yield zog 0.2% N/mm² | Elongation | Hardness HB |
| Super Duplex F55 | 860 | 720 nqi | 16 feeb | 270 max |
A182 F55 weld caj dab flange
Vim li cas thiaj xaiv peb
GNEE muaj 14 steel ntau lawm kab thiab 10 ua khoom siv rau machining, dabtsi yog khoov, pleev xim, kho cua sov, txiav, drilling, bevelling, tempering thiab nto kho. Peb muaj cov cuab yeej kuaj ua tiav thiab muaj zog technical force. Lub peev xwm tsim tau txhua xyoo yog ntau dua 60, 000 tonnes suav nrog txhua yam ntawm ob sab stainless hlau flanges.
GneeGroup koom nyob rau hauv lub exhibition
FAQ
1. Peb yuav ua li cas kom zoo?
Muaj ib txwm ua cov qauv ua ntej ua ntej ntau lawm;
Ib txwm ua qhov kev soj ntsuam zaum kawg ua ntej xa khoom xa tuaj.
2. Koj tuaj yeem yuav dab tsi ntawm peb?
Threaded flange, qhov (socket) weld flange, swb-hauv flange, ceg tawv flange, weld caj dab flange, qhov muag tsis pom flange
3. Vim li cas koj yuav tsum yuav los ntawm peb es tsis txhob ntawm lwm tus neeg muag khoom?
Lub Hoobkas npog thaj tsam ze li ntawm 60, 000 square metres thiab muaj cov cuab yeej ua haujlwm xws li cov txiav loj, lub voj voog, cov kab ncaj nraim, cov qhov cub tawg, thiab xuas nrig ntaus thiab cov kab txiav.
Cim npe nrov: astm a182 f55 super duplex flange, Tuam Tshoj astm a182 f55 super duplex flange manufacturers, lwm tus neeg, Hoobkas
